1 1/4 Epoxy Swivel Ring Hanger (100)

AII43-114 AII43-114
AII43-114 AII43-114

1 1/4 Epoxy Swivel Ring Hanger (100)

Description

Aimco International Group 43-114, 1 1/4 Epoxy Swivel Ring Hanger (100). Complies with Manufacturers' Standardization Society (MSS) SP-58 & SP-69 (Type 10). Complies with Federal Specifications A-A-1192A (Type 10)

Specifications

UNSPSC Code

27000000

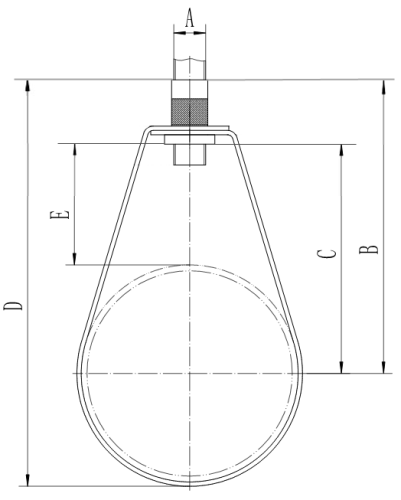

A

3/8in

Also Accommodates IPS Size

1

B

2 13/16in

Brand

AIMCO

C

1 15/16in

Category

Pipe Hangers and Supports

Copper Tube Size

1 1/4

d

3 7/16in

e

1 1/4in

Finish

Black Powder Epoxy

Material

Carbon Steel

Rec. Max. Load

400lb

Weight Per 100

9lb
