1 1/4 U-Bolt Stainless (100)

AII14SS-114 AII14SS-114
AII14SS-114 AII14SS-114

1 1/4 U-Bolt Stainless (100)

Item Code: AII14SS-114

Description

Aimco International Group A-FIG14SS6.1-1/4, 1 1/4 U-Bolt Stainless (100). Complies with Manufactures' Standardization Society (MSS) SP-58 & SP-69 (Type 24). Complies with Federal Specifications A-A-1192A (Type 24).

Specifications

UNSPSC Code

27000000

Brand

AIMCO

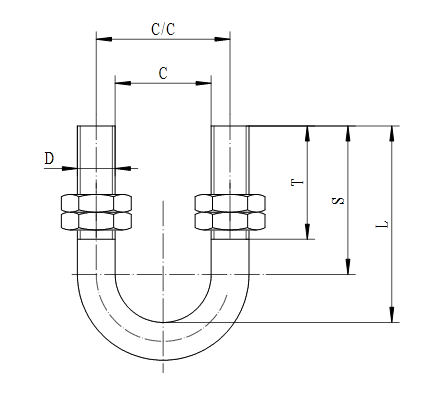

C

1 11/16in

C/C

2 1/16in

Category

Pipe Hangers and Supports

d

3/8 In

Finish

Stainless Steel

L

3 11/16in

Pipe Size

1 1/4

Rec. Max. Load 343C

1220 lb

Rec. Max. Load 399C

1090 lb

S

2 7/8in

T

2 1/8in

Weight Per 100

28 Lb
