Plated 1/2 Zinc Top Beam Clamp (100)

AII406Z-12 AII406Z-12
AII406Z-12 AII406Z-12

Plated 1/2 Zinc Top Beam Clamp (100)

Item Code: AII406Z-12

Description

Aimco International Group A-FIG406Z.1/2, Plated 1/2 Zinc Top Beam Clamp (100). Malleable Iron, with hardened steel set screw. Complies with Manufactures' Standardization Society (MSS) SP-58 & SP-69 (Type 19). Complies with Federal Specifications A-A-1192A (Type 19).

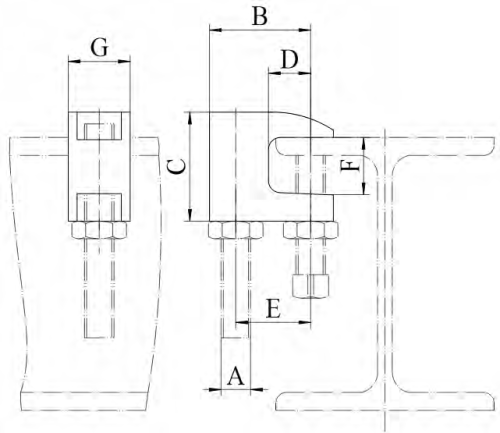

Specifications

UNSPSC Code

27000000

B

1in

Brand

AIMCO

C

1 1/2in

Category

Strut Channels & Fittings

d

1 11/16in

e

1/2in

Finish

Zinc Electro-Galvanized

Material

Malleable Iron

Max. Pipe Size

4

Rec. Max. Load

1130lb

Rod Size A

1/2

Set Screw Size

3/8-16

Weight Per 100

34lb
